Description
| Model Number | Quickie 2/Quickie 2 Lite: EIQ2X |
| Frame Style | Folding |
| HCPCS Code | K0005 |
| Wheelchair Weight | Quickie 2: 25.4 lbs. / 13.6 lbs (transport weight) Quickie 2 Lite Fixed Front: 23.5 lbs. / 12 lbs (transport weight) Quickie 2 Lite Swing Away: 24.8 lbs. / 12.6 lbs (transport weight) Quickie 2 HP: 27.9 lbs. |
| Frame Material | Aluminum |
| User Weight Capacity | Quickie 2: 300 lbs. Quickie 2 Lite: 265 lbs. Quickie 2 HP: 250 lbs. Quickie 2/Quickie 2HP Heavy Duty: 350 lbs. |
| Transit Approved | Yes |
| Shipping Dimensions | 33″ L x 38″ H x 13″ W |
| Average Shipping Weight | 50 lbs. |
| FRAME AND FEATURE MEASUREMENTS | |
| Seat Widths | Quickie 2: 12″ to 22″ Quickie 2 Lite: 14″ to 20″ Quickie 2 HP: 11″ to 22″ |
| Seat Depths | Quickie 2: 12″ to 20″ Quickie 2 Lite: 14″ to 20″ Quickie 2HP: 10″ to 20″ |
| Frame Angle | Quickie 2 Lite Fixed Front: 70° or 80° |
| Front Seat-to-Floor Height | 13.5″ to 22″ |
| Rear Seat-to-Floor Height | 13″ to 22″ |
| Lower Leg Length Setting | 5.5″ to 20.5″ |
| Back Height | 9″ to 21″ |
| Angle Adjustable Backrest Adjustment Range | -15° to +3° |
| Camber | 0°, 2°, 4° |
| Center of Gravity (COG) Adjustment | 1″ to 3.5″ |
| Tilt Range | N/A |
| OPTIONS AND ACCESSORIES | |
| Frame Type | Rear Side Frame Straight Rear Side Frame Rounded Depth Adjustable Back (DAB) Heavy Duty 70° Fixed Front Frame 80° Fixed Front Frame |
| Special Packages | N/A |
| Tilt Release Options | N/A |
| Frame Inset | N/A |
| Caster Wheels | 3″ Micro 4″ Low Profile Polyurethane 4″ Micro Lighted 4″ x 1″ Aluminum Polyurethane 4″ x 1.25″ Semi Pneumatic 4″ x 1.5″ Aluminum Soft Roll 5″ Low Profile Polyurethane 5″ Micro Lighted 5″ x 1″ Aluminum Polyurethane 5″ x 1.5″ Semi-Pneumatic 5″ Soft Roll (Grey) 5″ x 1.5″ Aluminum Soft Roll 6″ Polyurethane 6″ Pneumatic 6″ x 1.5″ Semi Pneumatic 6″ x 1.5″ Aluminum Soft Roll 7″ Polyurethane 8″ Polyurethane 8″ Pneumatic 8″ x 1.5″ Semi Pneumatic 8″ x 2″ Pneumatic 8″ x 2″ Pneumatic with Airless Insert |
| Caster Options | Caster Pin Locks |
| Hangers | 60° Swing In/Out Hanger 70° Swing In/Out Hanger 80° Swing In/Out Hanger 60° Hemi Swing In/Out Hanger 70° Hemi Swing In/Out Hanger 70° Swing In/Out Front Mount 80° Swing In/Out Front Mount 90° Swing In/Out Front Mount Articulating Hanger Elevating Hanger Elevating Hanger Front Mount |
| Footplates | Composite Composite Angle Adjustable Aluminum Angle Adjustable – Extension Mount Aluminum Angle Adjustable – Front Mount Aluminum Footplate – Fixed Platform Flip Up |
| Footplate Options | Heel Loops Leg Strap Extension Tubes |
| Axle | Quick Release Steel Quad Quick Release Steel |

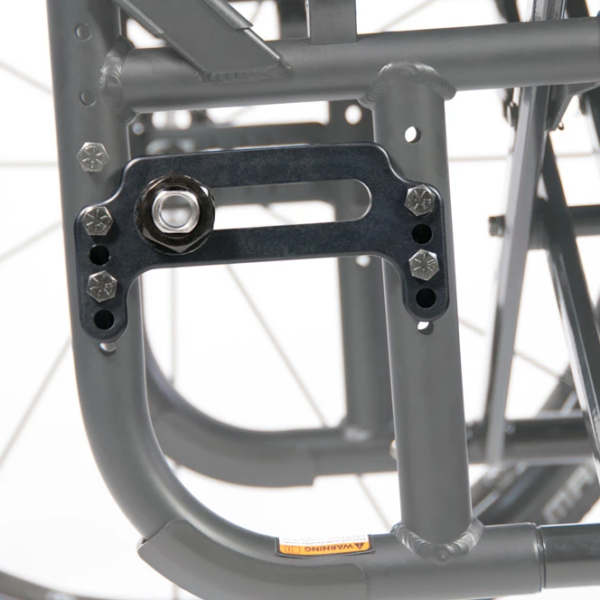

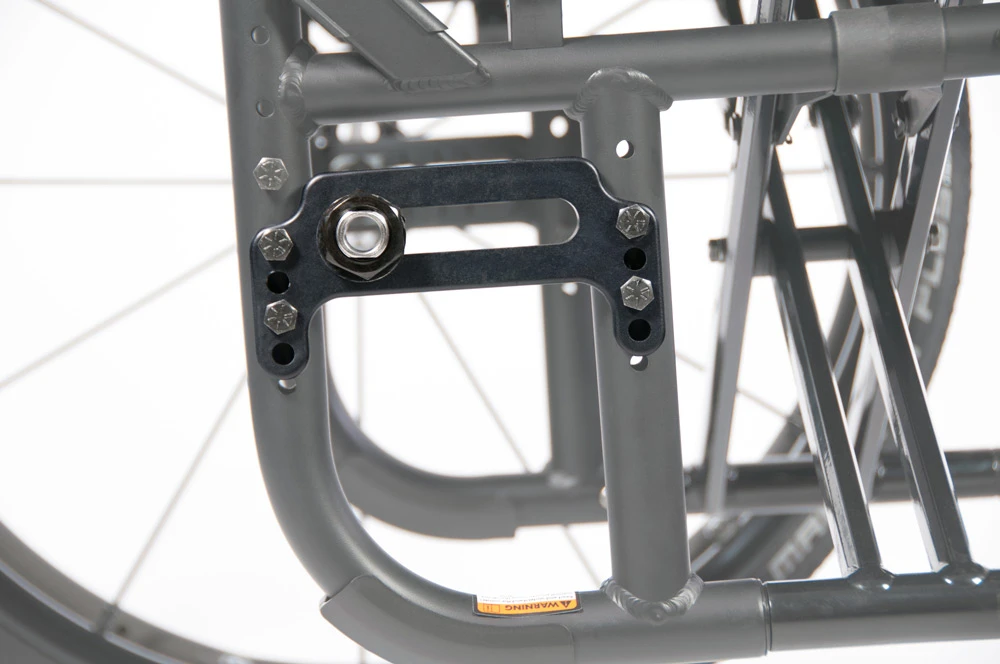

| Axle Plate | Standard Adjustable Amputee Adjustable One Arm Drive |
| Rear Wheel Type | 20″ Mag Wheel 22″ Mag Wheel 24″ Mag Wheel 20″ Mag Wheel 5-Spoke 22″ Mag Wheel 5-Spoke 24″ Mag Wheel 5-Spoke 20″ Lite Spoke Wheel 22″ Lite Spoke Wheel 24″ Lite Spoke Wheel 25″ Lite Spoke Wheel 26″ Lite Spoke Wheel 22″ Ultra Lightweight Spoke Wheel 24″ Ultra Lightweight Spoke Wheel 22″ Spinergy SPOX Black 24″ Spinergy SPOX Black 25″ Spinergy SPOX Black 26″ Spinergy SPOX Black 22″ Spinergy LX Black 24″ Spinergy LX Black 25″ Spinergy LX Black 26″ Spinergy LX Black 24″ Mountain |
| Rear Wheel Tire | Pneumatic Pneumatic with Airless Insert Full Poly High-Pressure Clincher Back High-Pressure Clincher Knobby V-TRAK Schwalbe® Marathon Plus Evolution SHOX® Performance Poly Mountain Tire |
| Handrims | Aluminum Anodized Plastic Coated Natural Fit – Standard Grip Natural Fit – Super Grip Natural Fit – No Thumb Grip Natural Fit LT – Standard Grip Natural Fit LT – Super Grip Natural Fit LT – No Thumb Grip Spinergy Flex Rim Projection – 8 Oblique The Surge – Oval w/Gription Strip The Surge LT – Oval w/Gription Grip Q-Grip Neoprene Coated |
| Hub Lock | N/A |
| Suspension | Frog Legs Suspension Fork |
| Backrest Type | Standard Angle Adjustable -15° to +3° (3″ – 5″ Pivot Height) Angle Adjustable -15° to +3° (5″ – 7″ Pivot Height) Depth Adjustable (DAB) |
| Back Post Options | Push Handle Straight Push Handle 8° Angle Adjustable Straight Push Handle Regular Stroller Handles Tall Stroller Handles Depth Adjustable Back – Swing Away Stroller Handles Folding Push Handle with Ht. Adj. Back Depth Adjustable Back – Post Standard Depth Adjustable Back – Post Medium Depth Adjustable Back – Post Tall |
| Backrest Options | Stabilizer Bar Reinforced Upholstery |
| Back Upholstery | Standard Nylon Upholstery Standard Upholstery EXO Tension Adjustable Ballistic Tension Adjustable EXO Tension Adjustable 3DX Vented JAY® GO Back Depth Adjustable Solid Back JAY® J3™ Back |
| Military Service Patches | Marines Army Navy Air Force Coast Guard Purple Heart |

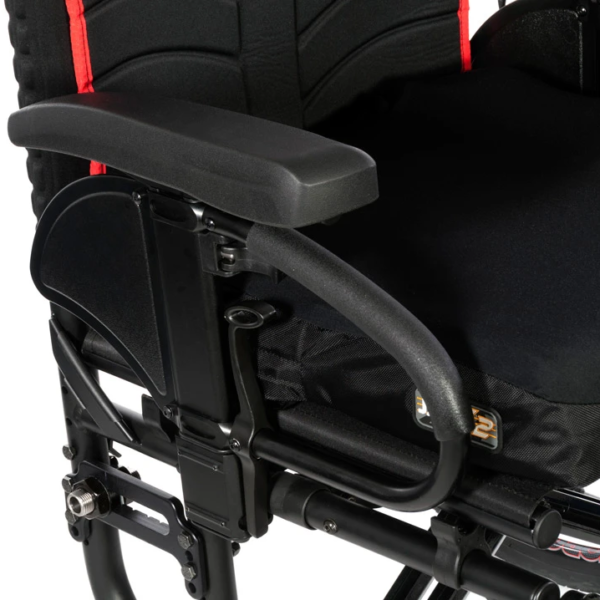

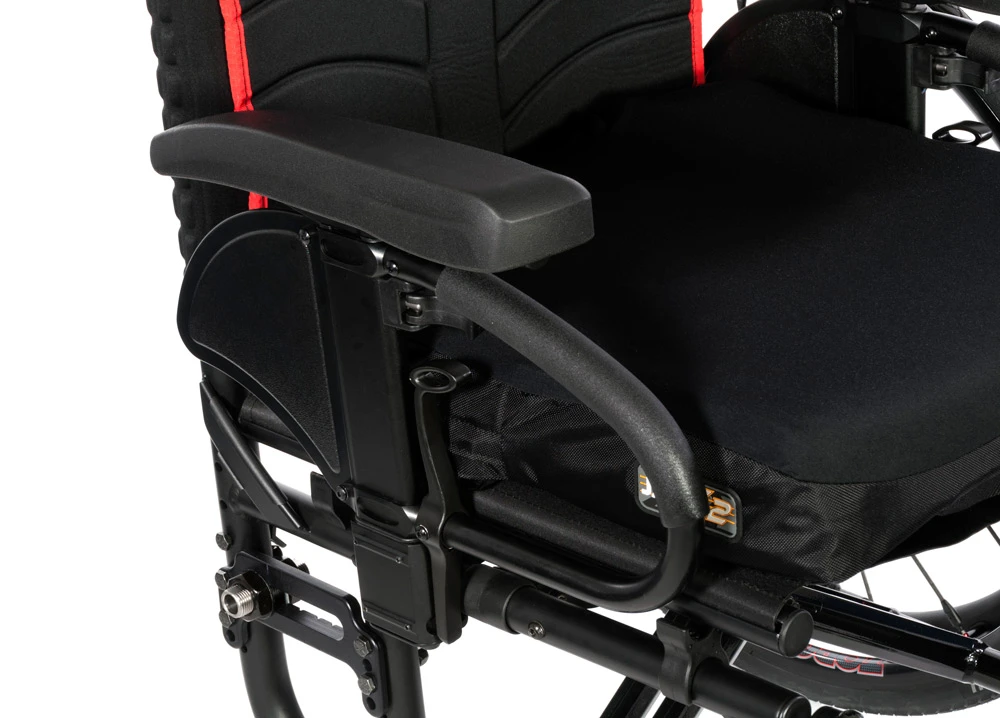

| Armrests | Padded Swing-Away Single Post Height Adjustable Standard Single Post Height Adjustable Low Flip Back Height Adjustable Classic Flip Back Height Adjustable LITE Flip Back Length Adjustable Locking Flip-up (DAB) Adjustable Locking Flip-up (DAB) |
| Arm Pads | Desk Length – Classic Full Length – Classic Arm pad Foam – Short Arm pad Foam – Long Ergo Armpad |
| Wheel Locks | High Mount Push High Mount Pull Ergo Scissor Compact Unilateral Wheel Lock 6″ Extension Handle Pair |
| Seating | Seat Sling 2″ Cushion JAY Cushions/Backs |
| Power Assist | Quickie Xtender™ JWX-2 and Pneumatic Wheels Xtender Spare NiMH Power Pack Xtender Spare Li-ion Power Pack SPARE 22″ Spoke Pneumatic Aluminum SPARE 22″ Spoke Pneumatic Plastic SPARE 24″ Spoke Pneumatic Aluminum SPARE 24″ Spoke Pneumatic Plastic |
| Grade Aid | Grade Aid |
| Anti-Tips | Rear Anti-tips |
| Side Guards | Plastic – Standard Plastic – Low |
| Side Guard Options | N/A |
| Positioning Belts | 1.5″ Auto Buckle 2″ Aircraft Buckle 2″ Padded Aircraft Buckle |
| Tray Tables | Small Medium Large X-Large |
| Accessories | Quickie Backpack Zippie Backpack Seat Pouch Caddy Clear Spoke Guard Black Spoke Guard Gel Cover Hanger/Frame Gel Cover Swing-Away Armrest Extra Leg Strap Black Impact Guard Neoprene Crutch Holder IV Holder O2 Holder Tool Kit |
| Frame Color Options | Aztec Gold Black Black Cherry Black Opal Blue Opal Candy Blue Candy Purple Candy Red Electric Blue Evergreen Glow Green Apple Hot Sparkle Pink Mauve Pink Rootbeer Sparkle Silver Sunrise Orange Titanium Color Paint Yellow Matte Black Matte Black Cherry Matte Electric Blue Matte Evergreen Matte Purple Desert Camouflage Mossy Oak Camouflage Stars & Stripes Zebra |
| Anodized Color Options | N/A |
As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change Specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
