Quickie® IRIS® Tilt-In-Space Wheelchair

40° or 55° of Intelligent Rotation in Space Technology

Intelligent Rotation in Space technology means the seat frame rotates around the user’s center of gravity. This results in a smooth tilting motion that is easy for you to control and allows for the shortest possible wheelbase that is easy for you to maneuver. The IRIS manual wheelchair features 40° or 55° rotation ranges that can be set to achieve up to 45° or 60° of posterior rotation for superior positioning.

The Quickie IRIS now features a new Standard weight capacity of 300 lbs and Heavy Duty weight capacity of 400 lbs.

JAY Lower Extremity Support

The new JAY Lower Extremity Support option is fully integrated into the Quickie IRIS hanger mount. The swing in/out latch mechanism design makes changing hangers from the lower extremity support a very intuitive process.

Available in two pad sizes, the technology allows for vertical and horizontal angle adjustment to achieve the proper support for our clients’ needs.

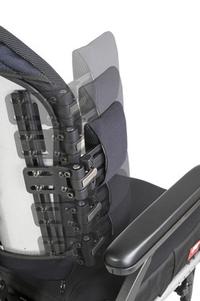

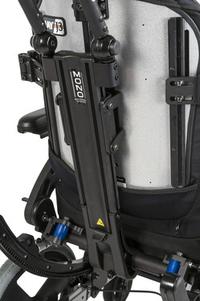

MONO Backrest System® Option

The MONO Backrest System’s single-post offers limitless seating and positioning capabilities. By mounting the backrest to a single central post, the backrest and chair widths may be selected independently, hardware interference is eliminated to allow for infinite adjustment of lateral thoracic supports, and the backrest can achieve 2” of midline backrest offset.

The MONO Backrest System offers an optional dynamic function, 35° angle adjustment, and folds forward for easy transport.

Intuitive Hanger Designs

The IRIS’s new swing-in/swing-out hanger design features an intuitive bi-directional release lever that follows your hand’s movement. A tapered locking mechanism prevents the hanger from loosening over time.

The Elevating/Articulating Legrest includes 2″ of height adjustment to better align with the knee joint for a natural motion. Audible clicks index its position as it is elevated. The improved latch mechanism allows swapping between swing-in/swing-out hangers and ELR/ALR without additional hardware.

#Ref: DNR Wheels

Categories: ,

Description

Model Number EIZ4-2
Frame Style Rotation-in-Space
HCPCS Code E1161
Wheelchair Weight 39 lbs.
Frame Material Aluminum
User Weight Capacity Standard: 300 lbs.

Heavy Duty: 400 lbs.
Transit Approved Yes
Shipping Dimensions Boxed: 36″ L x 28″ W x 37″ H and 20″ L x 10″ W 20″ H

Palletized: 47″ L x 40″ W x 54″ H
Average Shipping Weight Boxed: 90 lbs. and 15 lbs.

Palletized: 150 lbs.
FRAME AND FEATURE MEASUREMENTS
Seat Widths 14″ to 22″
Seat Depths 14″ to 22″
Frame Angle N/A
Front Seat-to-Floor Height 12.5″ to 19″
Rear Seat-to-Floor Height 12.5″ to 19″
Lower Leg Length Setting N/A
Back Height 15″ to 21″ or 18″ to 24″
Angle Adjustable Backrest Adjustment Range -30° to 5°
Camber 0°
Center of Gravity (COG) Adjustment N/A
Tilt Range 40°

55°
OPTIONS AND ACCESSORIES
Frame Type Frame Options:

Standard

Heavy Duty

Vent/Battery Base Tray

Contrature Seat Frame

Frame Struts:

Fixed

Width Adjustable
Special Packages N/A
Tilt Release Options Foot Release

Backrest Dual Trigger
Frame Inset N/A
Caster Wheels 4″ x 1.25″ Semi-Pneumatic

5″ x 1″ Polyurethane

5″ x 1.5″ Semi-Pneumatic

6″ x 1″ Polyurethane

6″ x 1.5″ Semi Pneumatic

8″ x 1″ Polyurethane

8″ x 1.5″ Semi-Pneumatic

8″ x 2″ Pneumatic

8″ x 2″ Pneumatic with Airless Insert
Caster Options N/A
Hangers 60° Swing In/Out

70° Swing In/Out

80° Swing In/Out

70° Swing In/Out Front Mount

80° Swing In/Out Front Mount

90° Swing In/Out Front Mount

70° Heavy Duty Front Mount Lift-Off

80° Heavy Duty Front Mount Lift-Off

90° Heavy Duty Front Mount Lift-Off

Elevating Hanger Front Mount

Articulating

Elevating

Contracture
Footplates Composite

Composite Angle Adjustable

Adult Angle Adjustable

Kids Angle Adjustable

Aluminum

Platform Flip-up
Footplate Options Neoprene Covers

Heel Loops

Toe Loops

Leg strap

Extension Tubes
Axle Quick Release

Threaded
Axle Plate Standard

One Arm Drive
Rear Wheel Type 12″ Mag

16″ Mag

20″ Mag / 5 Spoke Mag

22″ Mag / 5 Spoke Mag

24″ Mag / 5 Spoke Mag

24″ Spoke
Rear Wheel Tire Pneumatic

Pneumatic with Airless Insert

Full Poly

Low Poly
Handrims Aluminum Anodized

Plastic Coated
Hub Lock 12″ or 16″
Suspension N/A
Backrest Type Fixed

Height Adjustable

Reclining

Dynamic

Mono Back

J3
Back Post Options Adjustable Stroller Handles

Removable Extension
Backrest Options N/A
Back Upholstery J3
Military Service Patches N/A
Armrests Dual Post Height Adjustable

Dual Post Flip Back

Dual Post

Dual Post Flip Back Height Adjustable

Length Adjustable Locking Flip-Up

Single Post Height Adjustable

Adjustable Locking Flip-up
Arm Pads Desk Length – Classic

Desk Length – Contour

Full Length – Classic

Full Length – Contour

Foam

Ergo armpad
Wheel Locks Push to Lock

Attendant (Foot Lock)

Optional Extension Handle
Seating Standard Seat Pan

Drop Seat Pan

JAY Cushion
Power Assist N/A
Grade Aid N/A
Anti-Tips Rear Anti-tips
Side Guards Plastic Regular

Plastic Kids
Side Guard Options N/A
Positioning Belts 1.5″ Auto Buckle

2″ Aircraft Buckle

2″ Padded Aircraft Buckle

2″ Dual Pull Squeeze Pad
Tray Tables Small

Medium

Large

X-Large
Accessories Quickie Backpack

Seat Pouch

Caddy

O2 Holder

IV Pole

Clear Spoke Guards

Black Spoke Guards

Vent Tray for LTV Ventilators

Vent Tray for Trilogy Ventilators

JAY Lower Extremity S/A Support
Frame Color Options Aztec Gold

Black

Black Cherry

Black Opal

Blue Opal

Candy Blue

Candy Purple

Candy Red

Electric Blue

Evergreen

Glow

Green Apple

Hot Sparkle Pink

Mauve Pink

Rootbeer

Sparkle Silver

Sunrise Orange

Titanium Color Paint

Yellow

Matte Black

Matte Black Cherry

Matte Electric Blue

Matte Evergreen

Matte Purple

Desert Camouflage

Mossy Oak Camouflage

Stars & Stripes

Zebra
Anodized Color Options N/A

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
