Description
| Model Number | EIZ9 |
| Frame Style | Rotation-in-Space |
| HCPCS Code | E1161 |
| Wheelchair Weight | 39 lbs. |
| Frame Material | Steel |
| User Weight Capacity | 265 lbs. |
| Transit Approved | Yes |
| Shipping Dimensions | Boxed: 36″ L x 28″ W x 37″ H and 20″ L x 10″ W 20″ H Palletized: 47″ L x 40″ W x 54″ H |
| Average Shipping Weight | Boxed: 90 lbs. and 15 lbs. Palletized: 150 lbs. |
| FRAME AND FEATURE MEASUREMENTS | |
| Seat Widths | 14″ to 20″ |
| Seat Depths | 14″ to 22″ |
| Frame Angle | N/A |
| Front Seat-to-Floor Height | 14″ to 20.5″ |
| Rear Seat-to-Floor Height | 14″ to 20.5″ |
| Lower Leg Length Setting | 9.9″ to 18.7″ |
| Back Height | 15″ to 21″ or 18″ to 24″ |
| Angle Adjustable Backrest Adjustment Range | -30° to 5° |
| Camber | 0° |
| Center of Gravity (COG) Adjustment | N/A |

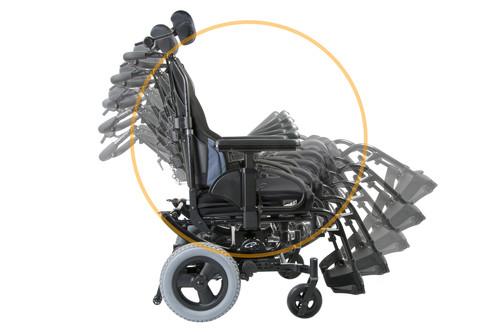

| Tilt Range | 45° |
| OPTIONS AND ACCESSORIES | |
| Frame Type | Standard |
| Special Packages | N/A |
| Tilt Release Options | Foot Release Backrest Dual Trigger |
| Frame Inset | N/A |
| Caster Wheels | 4″ x 1.25″ Semi-Pneumatic 5″ Low Profile Polyurethane 5″ x 1.5″ Semi-Pneumatic 6″ Polyurethane 6″ x 1.5″ Semi Pneumatic 8″ Polyurethane 8″ x 1.5″ Semi-Pneumatic 8″ x 2″ Pneumatic 8″ x 2″ Pneumatic with Airless Insert |
| Caster Options | N/A |
| Hangers | 70° Swing In/Out 70° Swing In/Out Front Mount 80° Swing In/Out 80° Swing In/Out Front Mount Elevating |
| Footplates | Composite Adult Angle Adjustable Aluminum |
| Footplate Options | Heel Loops Toe Loops Extension Tubes |
| Axle | Quick Release Threaded |
| Axle Plate | Standard |
| Rear Wheel Type | 12″ Mag 16″ Mag 20″ Mag 22″ Mag 24″ Mag |
| Rear Wheel Tire | Pneumatic Pneumatic with Airless Insert Full Poly Low Poly |
| Handrims | Aluminum Anodized Plastic Coated |
| Hub Lock | N/A |
| Suspension | N/A |
| Backrest Type | Folding Non-Folding J3 |
| Back Post Options | Fixed Height Adjustable Reclining |
| Backrest Options | N/A |
| Back Upholstery | J3 |
| Military Service Patches | N/A |
| Armrests | Dual Post Height Adjustable Dual Post Flip Back Height Adjustable Single-Post Height Adjustable Optional Transfer Bar |
| Arm Pads | Desk Full |
| Wheel Locks | Push to Lock Attendant (Foot Lock) Optional Extension Handle |
| Seating | Standard Seat Pan JAY Cushion |
| Power Assist | N/A |
| Grade Aid | N/A |
| Anti-Tips | Rear Anti-tips |
| Side Guards | N/A |
| Side Guard Options | N/A |
| Positioning Belts | 1.5″ Auto Buckle 2″ Padded Aircraft Buckle |
| Tray Tables | N/A |
| Accessories | Quickie Backpack Tilt Stops |
| Frame Color Options | Black Black Opal Blue Opal Candy Blue Candy Red |
| Anodized Color Options | N/A |
As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
